Bug 449 - Lines flipped using flat shading & supersampling
Summary: Lines flipped using flat shading & supersampling
Status: VERIFIED FIXED
Alias: None
Product: Jogl
Classification: JogAmp
Component: windows (show other bugs)
Version: 2
Hardware: pc_all windows
: --- major
Assignee: Sven Gothel
URL:
Depends on:
Blocks:

Reported: 2010-12-28 17:11 CET by Owen Dimond
Modified: 2011-03-10 23:35 CET (History)
1 user (show)

See Also:
Type: ---
SCM Refs:
Workaround: ---

Attachments
Application for reproducing the bug (4.54 KB, application/octet-stream)
2010-12-28 17:11 CET, Owen Dimond 		Details
etc\test.bat for autobuild b266 (9.35 KB, text/x-log)
2010-12-28 17:12 CET, Owen Dimond 		Details
Screenshot of example application (5.48 KB, image/png)
2010-12-28 17:14 CET, Owen Dimond 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description Owen Dimond 2010-12-28 17:11:45 CET
Created attachment 207 [details]
Application for reproducing the bug

We are seeing a bug in JOGL where lines are flipped (but triangles are not) when both these settings are enabled:

1. gl.glShadeModel(GL2.GL_FLAT);
2. caps.setSampleBuffers(true);

This occurs on Windows 32-bit and 64-bit, have not tested on Linux or Mac.
Comment 1 Owen Dimond 2010-12-28 17:12:45 CET
Created attachment 208 [details]
etc\test.bat for autobuild b266
Comment 2 Owen Dimond 2010-12-28 17:14:32 CET

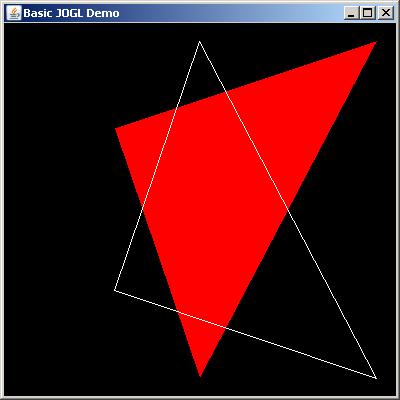

Created attachment 209 [details]
Screenshot of example application
Comment 3 Owen Dimond 2011-02-09 18:19:25 CET
Hi Sven,

Would it be possible to have this bug looked at soon? If you need more information please let me know.

Thanks,
Owen.
Comment 4 Michael Bien 2011-03-10 22:43:23 CET
the bug is not reproducible for me, the lines are perfectly aligned with the triangle.
my test environment:
jogl build 350
linux / Nvidia GTX 295 / 260.19.36

looks like a driver bug to me. Can you provide your test setup?
Comment 5 Owen Dimond 2011-03-10 22:54:03 CET
I just tried this again with a current build (b350) and the problem is no longer there. I tested again with b266 just to make sure and that build fails. I'll work backwards and figure out which build fixed the problem, then I guess we can close the bug.

Windows XP, Nvidia 8400GS, driver 266.58
Comment 6 Owen Dimond 2011-03-10 23:35:08 CET
This was fixed in b283, I'm changing this to resolved.
