Bug 1196 - WinXP UnsatisfiedLinkError newt.dll
: WinXP UnsatisfiedLinkError newt.dll
Status: RESOLVED FIXED
: None
: Newt
: JogAmp
: windows (show other bugs)
: 2.3.2
: pc_x86_32 windows
: --- normal
: Sven Gothel
:
:
:

Reported: 2015-08-20 13:54 CEST by Xerxes Rånby
Modified: 2015-09-27 01:28 CEST (History)
1 user (show)

:
Type: ---
SCM Refs:
07fb56cdd2ce6a74b2874cc6131bc2fd65f0887b
Workaround: ---


Attachments
jogamp-2.3.2 19aug test.log test_dbg.log .7z (188.29 KB, application/octet-stream)
2015-08-20 13:54 CEST, Xerxes Rånby
Details
2015-08-20 14:23 CEST, Xerxes Rånby
Details
2015-08-20 14:28 CEST, Xerxes Rånby
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Xerxes Rånby 2015-08-20 13:54:11 CEST
Created attachment 720 [details]
jogamp-2.3.2 19aug test.log test_dbg.log .7z

The runtime version check using
etc\test.bat
fails on WinXP with the message

Exception in thread "main" java.lang.RuntimeException: java.lang.ClassNotFoundException: Failed to find NEWT Display Class <.windows.DisplayDriver>
	at jogamp.newt.DisplayImpl.create(DisplayImpl.java:299)


cause seen in test_dbg.log

NativeLibrary.findLibrary(<newt>) (TempJarCache): C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\jogamp_0000\file_cache\jln3132821475144545958\jln6337580148321003734\natives\windows-i586\newt.dll
JNILibLoaderBase: loadLibraryInternal(newt), TempJarCache: C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\jogamp_0000\file_cache\jln3132821475144545958\jln6337580148321003734\natives\windows-i586\newt.dll
JNILibLoaderBase: System.load(C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\jogamp_0000\file_cache\jln3132821475144545958\jln6337580148321003734\natives\windows-i586\newt.dll) - mode 2
java.lang.UnsatisfiedLinkError: C:\Documents and Settings\Administrator\Local Settings\Temp\jogamp_0000\file_cache\jln3132821475144545958\jln6337580148321003734\natives\windows-i586\newt.dll: The specified procedure could not be found
	at java.lang.ClassLoader$NativeLibrary.load(Native Method)

this regression has been introduced between
2.2.4 == working
2.3.0 == not working
Comment 1 Xerxes Rånby 2015-08-20 14:23:26 CEST

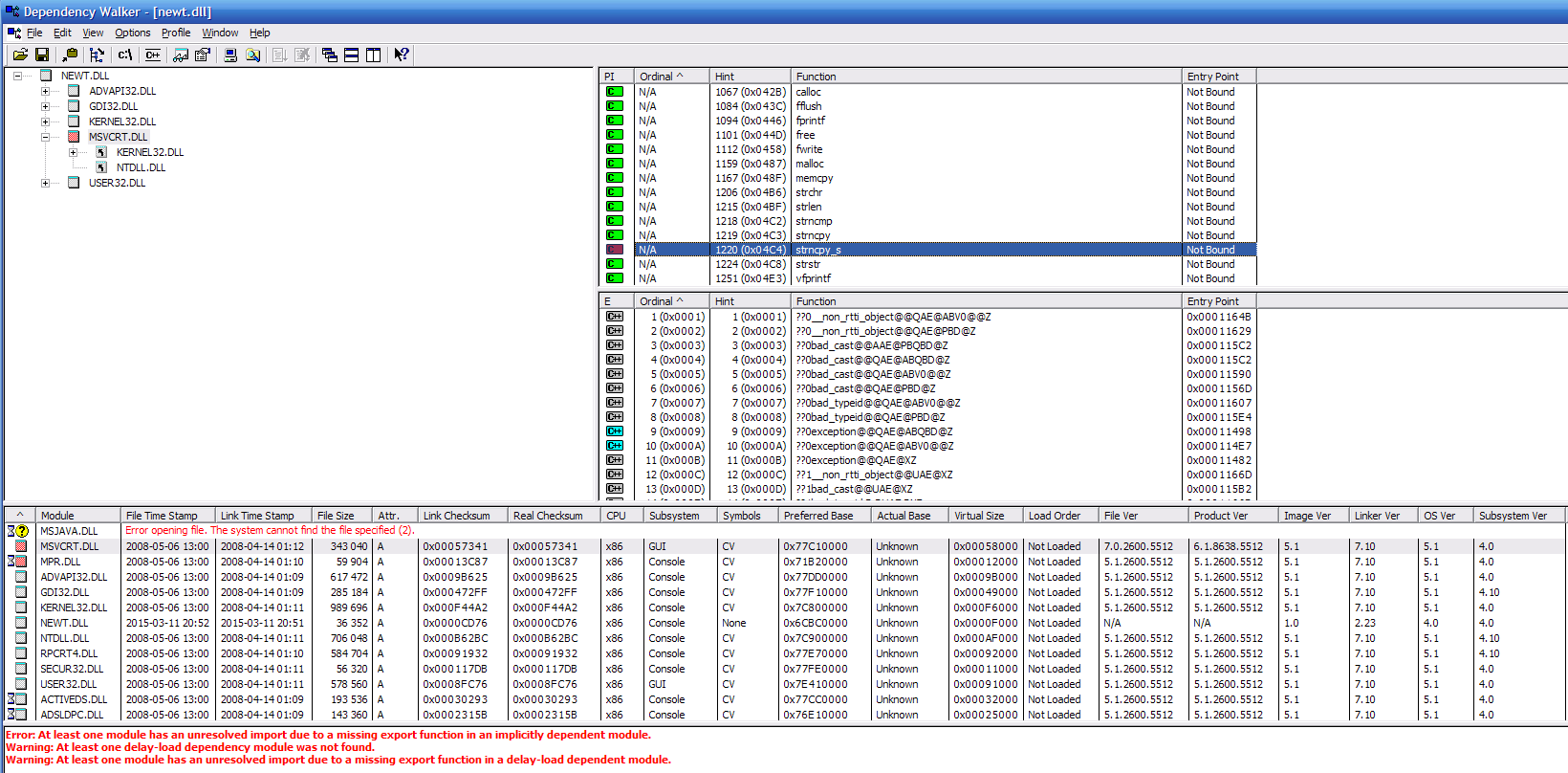

Created attachment 721 [details]

Using dependencywalker
http://dependencywalker.com/
reveal that the newt.dll fail to resolve strncpy_s from MSVCRT.DLL
Comment 2 Xerxes Rånby 2015-08-20 14:28:32 CEST
Created attachment 722 [details]

running dependencywalker on the newt.dll from 2.2.4 manages to resolve all functions used from MSVCRT.DLL
Comment 3 Xerxes Rånby 2015-08-20 14:50:05 CEST
it appears this is a mingw issue:
http://sourceforge.net/p/mingw-w64/mailman/message/31184492/

"
We recently received some bug reports that executables compiled with
mingw-w64 couldn't be executed on Windows XP environments. Users
would get fatal error messages which indicate that the symbol strnlen
couldn't be found in msvcrt.dll (which is correct for Windows XP).
"
Comment 4 Xerxes Rånby 2015-08-20 14:52:12 CEST
(In reply to comment #3)
> it appears this is a mingw issue:
> http://sourceforge.net/p/mingw-w64/mailman/message/31184492/
>
> "
> We recently received some bug reports that executables compiled with
> mingw-w64 couldn't be executed on Windows XP environments. Users
> would get fatal error messages which indicate that the symbol strnlen
> couldn't be found in msvcrt.dll (which is correct for Windows XP).
> "

we need to check if there is a similar issue with mingw and
strncpy_s
Comment 5 Sven Gothel 2015-08-20 21:13:42 CEST
2.2.4 == working = 78f641de80d1c37cd61e5300eeba369c6aa9b1a1
2.3.0 == not working = 99f14475993d127f1b927056b309477753563a02

"git diff 78f641de80d1c37cd61e5300eeba369c6aa9b1a1..99f14475993d127f1b927056b309477753563a02 src/newt/natives"

Discloses that WindowsEDID.c has been added,
i.e. a method to report the monitor dimension on Windows.
Even though this module loads all symbols dynamically ..
there might be an issue.

(No str*len* or str*cpy* call has been added)
Comment 6 Sven Gothel 2015-08-20 21:28:54 CEST
(In reply to comment #5)
> Discloses that WindowsEDID.c has been added,
> i.e. a method to report the monitor dimension on Windows.
> Even though this module loads all symbols dynamically ..
> there might be an issue.

Confirmed, without WindowsEDID.c module,
the newt.dll could be loaded and launched.

Now .. it doesn't seem that dependency walker
show the actual missing symbols .. hmm, darn.
Comment 7 Sven Gothel 2015-08-20 22:44:09 CEST
commit 07fb56cdd2ce6a74b2874cc6131bc2fd65f0887b

    Bug 1196: Fix Unresolved strncpy_s (MSVCRT) on WinXP

    Unresolved strncpy_s (MSVCRT) on WinXP,
    as shown w/ dependency walker (red module, red unresolved line).

    Mapped: _tcsncpy_s -> strncpy_s (!UNICODE).
    On WinXP MSVCRT has no strncpy_s.
      _tcsncpy_s(sOut, sOutLen, s, len)
      -> bound-check + _tcsncpy(sOut, s, len)
