Bug 986 - Crash using MESA drivers on VirtualBox OpenSuse
Summary: Crash using MESA drivers on VirtualBox OpenSuse
Status: UNCONFIRMED
Alias: None
Product: Jogl
Classification: JogAmp
Component: x11 (show other bugs)
Version: 2
Hardware: All linux
: --- normal
Assignee: Sven Gothel
URL:
Depends on:
Blocks:

Reported: 2014-02-25 19:05 CET by eban
Modified: 2014-03-11 15:20 CET (History)
1 user (show)

See Also:
Type: ---
SCM Refs:
Workaround: ---

Attachments
Hs_error log (94.04 KB, text/x-log)
2014-02-25 19:05 CET, eban 		Details
test,sh output (4.73 KB, text/plain)
2014-02-25 19:06 CET, eban 		Details
OS infos (33.99 KB, image/png)
2014-02-25 19:06 CET, eban 		Details
Display infos (37.83 KB, image/png)
2014-02-25 19:06 CET, eban 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description eban 2014-02-25 19:05:58 CET
Created attachment 601 [details]
Hs_error log

Running test.sh crashes on this configuration:
OpenSUSE 13.1, with VBox 3D acceleration enabled.
Mesa version is 9.2.3-61.9.1.x86_64
Comment 1 eban 2014-02-25 19:06:19 CET
Created attachment 602 [details]
test,sh output
Comment 2 eban 2014-02-25 19:06:37 CET

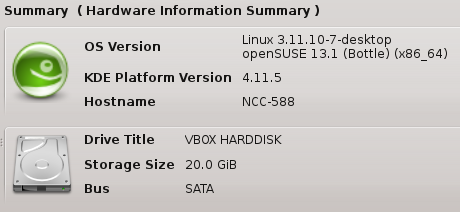

Created attachment 603 [details]
OS infos
Comment 3 eban 2014-02-25 19:06:55 CET

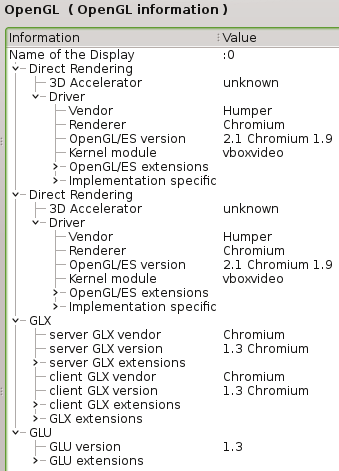

Created attachment 604 [details]
Display infos
Comment 4 eban 2014-02-25 19:07:37 CET
Sven Gothel comment: (http://forum.jogamp.org/Crash-using-MESA-drivers-td4031717.html)

Pls give more detail about:
  - Linux, Mesa and VBox version
  - Assuming you say Mesa, I guess it's software rendering,
    i.e. not VBox hw-accel driver.

> # A fatal error has been detected by the Java Runtime Environment:
> #
> #  SIGSEGV (0xb) at pc=0x00007f5c873f3590, pid=4861, tid=140034577839872
> #
> # JRE version: OpenJDK Runtime Environment (7.0_51) (build 1.7.0_51-b00)
> # Java VM: OpenJDK 64-Bit Server VM (24.45-b08 mixed mode linux-amd64
> compressed oops)
> # Problematic frame:
> # V  [libjvm.so+0x5d5590]  jni_IsInstanceOf+0xa0
> #
... [show rest of quote]
«  [hide part of quote]
...

> Stack: [0x00007f5c5734b000,0x00007f5c5744c000],  sp=0x00007f5c5744a300,  free
> space=1020k
> Native frames: (J=compiled Java code, j=interpreted, Vv=VM code, C=native code)
> V  [libjvm.so+0x5d5590]  jni_IsInstanceOf+0xa0
> V  [libjvm.so+0x5e7a42]  jni_GetDirectBufferAddress+0x82
> C  [libnativewindow_x11.so+0x3d7c]
>  Java_jogamp_nativewindow_x11_X11Lib_XRenderFindVisualFormat1+0x3a
> j
>  jogamp.nativewindow.x11.X11Lib.XRenderFindVisualFormat1(JJ)Ljava/nio/ByteBuffer;+0
>
> j
>  jogamp.nativewindow.x11.X11Lib.XRenderFindVisualFormat(JJ)Ljogamp/nativewindow/x11/XRenderPictFormat;+2
>
> j
... [show rest of quote]
This looks pretty generic and quite 'fishy' ..
«  [hide part of quote]
However it does involve a X11 native method it seems.

Pls be so kind an create a bug report w/ all the above information
incl. your attachement and my post here.

Thank you.

~Sven
Comment 5 eban 2014-02-25 19:08:24 CET
(In reply to comment #0)
> Created attachment 601 [details]
> Hs_error log
>
> Running test.sh crashes on this configuration:
> OpenSUSE 13.1, with VBox 3D acceleration enabled.
> Mesa version is 9.2.3-61.9.1.x86_64

Note that the crash was not occuring in version 2.1.2
Comment 6 eban 2014-02-25 20:27:39 CET
VBox version is 4.3.6 r91406
Comment 7 Sven Gothel 2014-03-10 22:04:02 CET
virtualbox-4.3_4.3.8-92456
  - Host Debian 8 (Jessie)
    - Host GPU: NV w/ NV proprietary driver

  - Guest Debian 7 (Wheezy)
    - Mesa 8.0.5 LLVM:
        - Onscreen: OK
        - FBO: OK
        - FBO.MSAA: NO
        - PBuffer: OK
        - Bitmap: OK

    - 3D Accel (Chromium 1.9):
        - Onscreen: OK
        - FBO: NO
        - FBO.MSAA: NO
        - PBuffer: NO
        - Bitmap: NO

Testing w/ Debian 8 (Jessie) now ..
Comment 8 eban 2014-03-11 15:20:49 CET
Have you reproduced it so far ?
